Rifle & Scope Ring Torque Specs

Torque settings are often specified by the manufacturer of the scope rings and mounts. Following these specifications with a torque wrench ensures that you are setting up your optics system for optimal performance. More importantly, it prevent over-tightening which could strip the screws or damages the scope or rifle components, or under-tighten, which could cause them to come loose in the field causing the rifle to shoot all over or worse.

With so many different rifle manufacturers, and even more accessory manufacturers for items like picatinny rails, stocks, chassis and scope rings popping up every day, it may be hard to know what torque specs you need to use on your rifle and the scope rings. There are however certain universal truths and engineering torque specs when it comes to certain types of mounts, screws, aluminum and metals, so although many manufacturers provide their own torque specs, many do not, and the universal torque specs for that type of mechanical join would be fine to use.

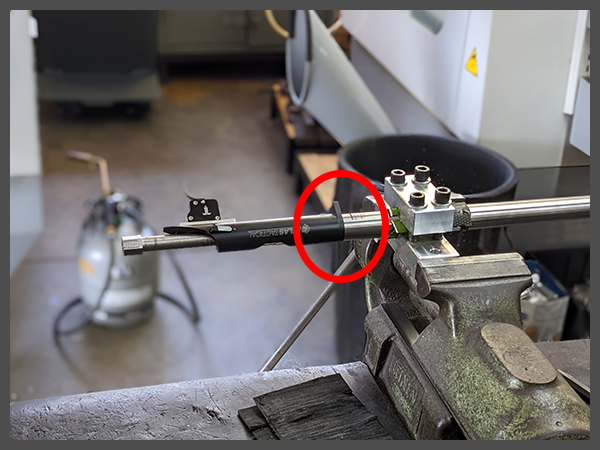

Every time I have had to fit a scope mount to a rifle action, or scope rings to a picatinny rail, or a barreled action to a chassis after taking it off, I had to search for the torque specs again on Google. Usually I find them after going through 5 or 10 results, but it still takes time. So I decided to create one rifle and scope ring torque specs database which I can bookmark and check back to quickly if I mount something to my rifle again. I added it on the website so all of you can also bookmark it and refer back to it whenever you take off a scope from a rifle and remount it, or take your barreled action of your chassis for cleaning and remount it again.

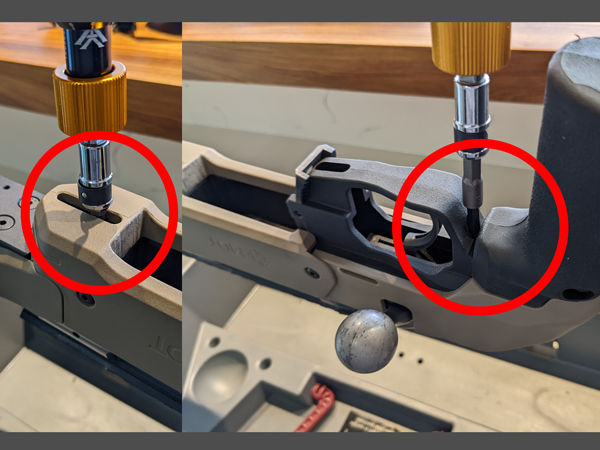

It is important to use a proper rifle torque wrench during installation of your rifle scope, rifle scope rings, and rifle action into the stock, as that is the only way you can really ensure you tighten the screws to the correct torque spec.

Why do you even need a scope torque wrench?

The purpose of using a torque wrench for rifle scope rings and mounts is to ensure consistent and precise tightening of the screws that secure the scope to the rifle. This is crucial for several reasons:

1. Prevents Over-Tightening: A torque wrench allows you to apply a specific amount of force to the screws, preventing over-tightening, which can damage the scope tube, rings, or mounts. Over-tightening can also deform the scope, affecting its internal mechanisms, particularly the adjustment turrets.
2. Prevents Under-Tightening: Under-tightening the screws may cause the scope to shift under recoil, which can result in inconsistent accuracy and a loss of zero.
3. Maintains Consistent Performance: By using a torque wrench, each screw receives an even and specified amount of pressure. This uniformity helps maintain the scope’s alignment and ensures that the mounts hold the scope securely without shifting, which is essential for maintaining point of aim over time, especially with high-recoil firearms or during long shooting sessions.
4. Protects Equipment: Rifle scopes are precision instruments, and improperly tightened screws can lead to damage not only to the scope but also to the rings and mounts themselves. A torque wrench helps protect this expensive equipment by ensuring that screws are tightened to the manufacturer’s recommended torque specifications.
5. Improves Repeatability: For shooters who require extreme precision, like long-range shooters, using a torque wrench contributes to the overall repeatability of the rifle system. Consistent torque ensures that the scope remains firmly in place through multiple shooting sessions, which is critical for maintaining accuracy.

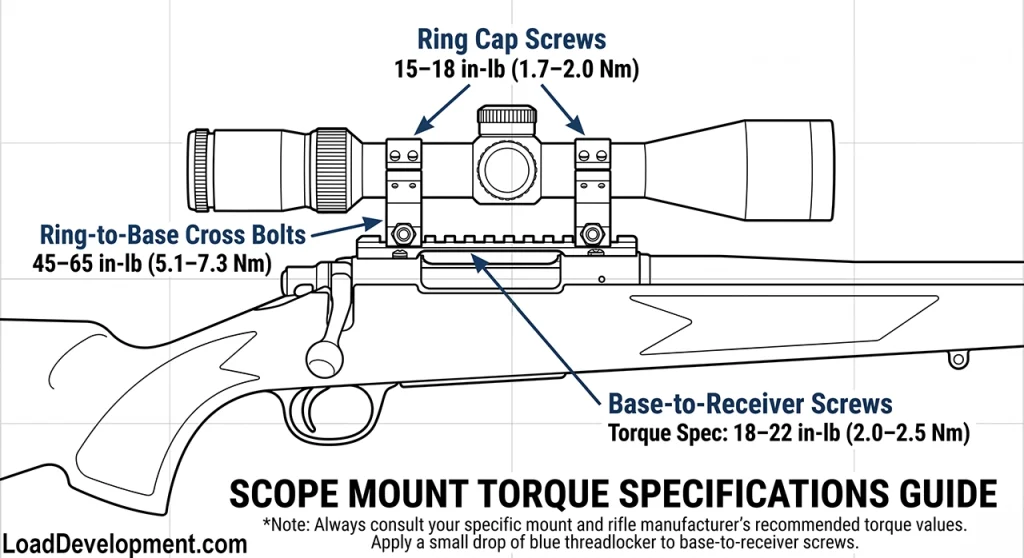

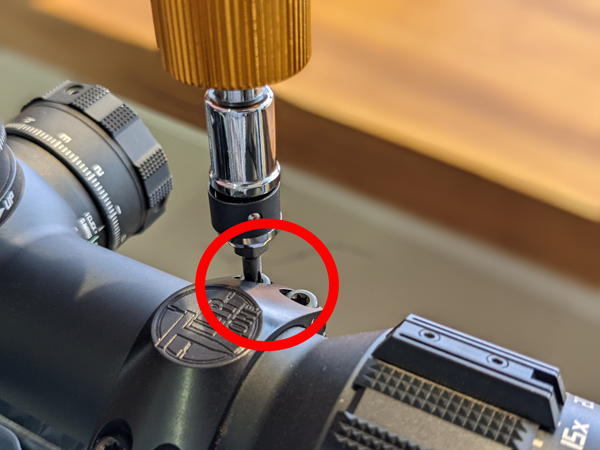

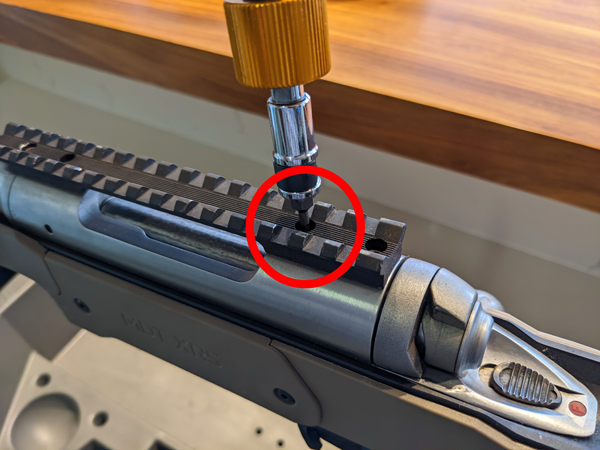

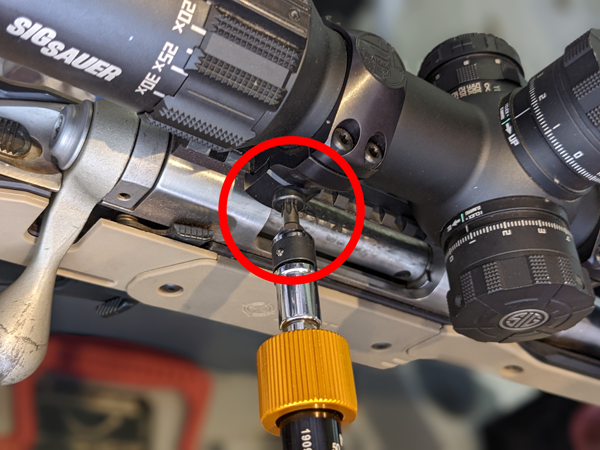

There are many factors that can affect the optimum torque for scope screws, such as the type of screw (Button head screws vs Socket head Cap screws), the type of metal (steel vs aluminum), and even the thread pitch. In general, however, most experts recommend using between 15-20 in/lbs for the scope ring caps, and 35-55 in/lbs for the scope rings to the base or picatinny rail.
