“Carbon ring” gets thrown around constantly in precision rifle circles, usually as the default explanation for any unexplained pressure spike, flyer, or stiff bolt lift. Ask ten shooters what it actually is and where it forms, and you will get ten different answers. Ask what causes it, and the answers get even fuzzier.
What is not in dispute is the effect. A developed carbon ring changes how your rifle behaves. It can shift velocity, open groups, make chambering feel gritty, and in the worst cases push chamber pressure into territory you do not want to be in with a full-charge load. Knowing exactly where the deposit forms and what causes it is the difference between chasing your tail with powder swaps and brass trimming versus actually fixing the problem at the chamber.
This guide covers the mechanics of carbon ring formation, why freebore diameter matters more than most shooters realize, how case neck length feeds into it, and a step-by-step removal process that works on hardened deposits without wrecking your throat.
A carbon ring is exactly what the name suggests: combustion residue that deposits in one concentrated band and then bakes into place under repeated heat and pressure cycles. Each shot lays down another microscopic layer, and each shot cures the layers beneath it.
Shooters often describe mature deposits as diamond-hard, and the comparison is not entirely off base. Diamond is carbon under heat and pressure. What is sitting in your throat is carbon that has been heat-cycled thousands of times at pressures north of 60,000 psi. It can genuinely be harder than the barrel steel around it.
The residue itself is unavoidable. Every powder produces carbon, so no propellant choice will make you immune. What varies is where that carbon ends up, how much of it accumulates, and how quickly it hardens.
That is where the real causes live, and they are mechanical rather than chemical:
- Freebore diameter that is too tight, which restricts gas flow past the bullet and drives carbon backward into the chamber
- Case neck length relative to chamber neck length, which determines how much open void exists for carbon to fill
- Cleaning technique that never reaches the deposit, since standard bore brushes are undersized for the chamber neck area
- Shot count between cleanings, because thin fresh carbon wipes out easily while cured carbon does not
Note that although we call it a barrel problem, the deposit is almost always in the chamber neck and throat region, not out in the rifled bore.
Carbon Ring Location
There are two distinct deposits that both get called a carbon ring, and separating them matters because they cause different symptoms and require different cleaning approaches.
The original carbon ring is the one benchrest shooters named decades ago. It sits in the throat and freebore, just ahead of the case mouth where the bullet bearing surface rides before it engages the lands. Conventional bore cleaning pulls out soft powder fouling but leaves this hardened layer behind. Over hundreds of rounds it thickens until it starts contacting the bullet before the bullet reaches the lands, and that is when you see erratic pressure and random flyers with no change in your loading process.
The chamber neck deposit is what most shooters mean today, particularly in the modern 6mm and 6.5mm cartridges. It builds in the annular space around the case neck, forward of the case mouth and back against the chamber’s neck-to-freebore step. This one produces the mechanical symptoms: heavy bolt closure, stiff bolt lift, cases that feel like they are being pinched.
| Deposit location | Primary symptoms | Why cleaning misses it |
|---|---|---|
| Throat and freebore | Pressure jumps, velocity drift, unexplained flyers | Hardened layer resists patches and solvent alone |
| Chamber neck void | Heavy bolt close, heavy bolt lift, tight chambering | Bore-diameter brushes are far too small to contact it |
The second location has two common drivers. Tight reamer freebore diameter blocks gas from escaping forward, so carbon reverses direction and packs into the chamber. And nearly every off-the-shelf cleaning kit is sized for the bore, so the jag, patch, and brush pass straight through the chamber neck without ever touching the walls.
Neck Length
Case neck length feeds directly into this problem, and it is usually the first thing worth measuring when a rifle starts chambering hard.
Heavy bolt closure or heavy bolt lift is typically the first symptom you feel. Both point to the case neck contacting or being squeezed by hardened carbon in the chamber neck.
Here is the geometry. Trim your necks shorter than necessary and you create a larger unoccupied gap between the case mouth and the chamber’s neck step, and that gap is exactly where carbon collects. More void means more room for deposits to build.
Once enough carbon has accumulated in that void, even properly trimmed brass can bottom into it during chambering. That gives you the hard bolt close. On firing, the case expands and the neck can wedge into the hardened deposit, which gives you the stiff lift.
Worth noting: heavy bolt lift can also come from the pressure side of a carbon ring. If pressure climbs enough, the case slams rearward against the bolt face and hangs up on the extractor or ejector plunger.
The opposite problem exists too. Let brass grow until overall case length exceeds chamber neck length and the case mouth crushes into the neck-to-shoulder step with no carbon involved at all. Same symptoms, different cause.
Practical tip: older cartridge designs with shoulder angles under 30 degrees tend to stretch more per firing than modern designs with steeper shoulders. A 308 Winchester will need trimming far more often than a 6mm Dasher, which frequently never grows enough to reach the step in its lifetime.
Measure your chamber neck length with a chamber cast or a fired, unsized case before you decide on a trim length. Trimming to an arbitrary book number is how shooters accidentally build themselves a larger carbon reservoir.
Freebore Diameter
This is the cause that gets blamed on everything else, and it is the one that actually explains most premature carbon ring complaints.
Shooters see rapid carbon buildup, and the community immediately points at brass quality or “dirty burning” powder. In practice, the culprit is far more often a chamber cut with a freebore diameter that is too tight for the bullet running through it.
Factory rifles chambered with SAAMI-spec reamers are less prone to this. It shows up far more in wildcats and custom reamer builds, where the freebore spec was copied from a print without anyone questioning it.
Where you see it most
The 6mm Dasher and 6mm GT crowd hits this constantly. A shooter takes delivery of a new custom build, and inside 100 rounds after a full clean is fighting heavy bolt lift and pressure signs, sometimes on charges well below their tested maximum.
The mechanism is straightforward. When freebore diameter is too tight, combustion gas and suspended carbon cannot flow past the bullet, so it reverses and packs into the first available void, which is that space between the case mouth and the chamber neck step.
The numbers that matter
Published SAAMI chamber dimensions for several modern 6mm cartridges, including the 6mm GT and 6mm Creedmoor, specify a freebore diameter of .2435″ or .2436″. From a carbon management standpoint, that is too tight. The volume of carbon ring complaints in the 6mm GT owner community backs that up.
The 6mm Dasher has no SAAMI standard, but the majority of Dasher reamers in circulation carry that same .2436″ freebore.
| Freebore diameter | Practical result |
|---|---|
| .2436″ or smaller | Restricted gas flow, rapid chamber neck carbon buildup |
| .2438″ to .2440″ | Gas and carbon vent forward, minimal chamber neck accumulation |

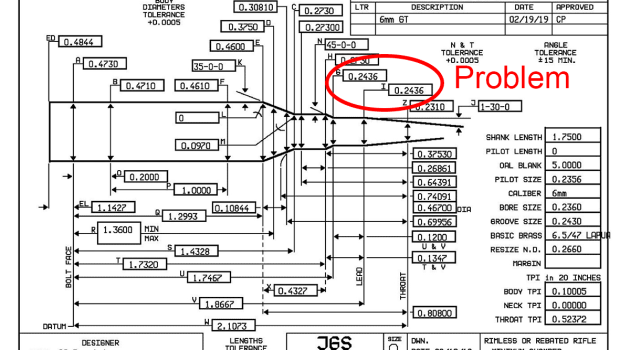

When a shooter reports premature buildup in these calibers, checking the reamer print almost always reveals .2436″ or tighter. No amount of brass trimming fixes it, and with a Dasher the brass usually never grows enough to touch the step anyway, so trimming was never the answer.
Running a reamer through to open the freebore to .2438″ or .2440″ resolves it immediately in nearly every case.
If you are speccing a new build or a rechamber in 6mm Dasher, 6mm GT, 6mm Creedmoor, or any modern 6mm, specify a reamer with a freebore diameter of .2438″ or larger. Confirm it on the print before the barrel is cut, not after.
Carbon Ring Causing Pressure
Pressure rise from a carbon ring is not mysterious once you think about it as a dimensional change to your chamber.
Every mechanism at work here comes down to the same thing: hardened carbon makes the chamber and throat smaller than the reamer cut them.
Four things happen as the deposit thickens:
- Neck constriction. Carbon in the chamber neck squeezes the case neck inward, increasing the grip on the bullet and raising the force required to release it.
- Reduced case capacity. Deposits displace chamber volume. Less volume behind the same charge weight means higher peak pressure.
- Throat restriction. Carbon in the freebore narrows the bore ahead of the bullet, increasing engraving resistance before the bullet even reaches the lands.
- Changed bullet jump. Buildup in the throat shortens effective jump, and if it gets thick enough the bullet contacts carbon on chambering, effectively jamming a load that was designed with clearance.
The practical warning sign is a load that was stable for months suddenly showing velocity climb, ejector marks, or stiff extraction with no change to components. That is not the brass wearing out. Check the throat with a borescope before you assume the load drifted.
Watch this especially closely if you loaded near the top of the pressure curve during development. A load with 2 percent margin at 200 rounds may have zero margin at 800 rounds with a mature carbon ring in place.
Cleaning Out A Carbon Ring
Cured carbon can be harder than your barrel steel, which is why the usual approach of a wet patch and a few passes with a bore brush does nothing to it. Shooters routinely scrub aggressively enough to risk throat damage and still leave the ring intact.
Chemical alone will not do it, and mechanical alone will not do it efficiently. The only approach that works reliably is a chemical soak to soften and lift the deposit, followed by targeted mechanical scrubbing while it is still wet. Solvent breaks the bond, the brush carries it away.
Here is the full process, in order.
Step 1: Verify With A Borescope
Do not start cleaning something you have not looked at. A Teslong borescope or equivalent is the single most useful diagnostic tool a precision shooter can own for this.
Insert from the action end, not the muzzle. This matters, and the next section explains why. Pull the bolt, drop the scope in through the receiver, and look at the chamber neck, the step into the freebore, and the first inch of rifling.
What you are looking for is a distinct dark band with visible texture, often slightly rough or crazed compared to the smooth steel around it. Note where it sits and how far it extends. Photograph or record it so you have a baseline to compare against.
Step 2: Chemical Soak
Match the solvent to a dedicated carbon remover, not a general-purpose bore cleaner. Copper solvents do not touch hard carbon.
| Solvent | Typical soak time | Notes |
|---|---|---|
| Bore Tech C4 Carbon Remover | 15 to 30 minutes | Ammonia-free, safe on steel, best first choice |
| Wipe-Out / Patch-Out foaming | 20 to 60 minutes | Foam expands to fill the chamber neck void well |
| CLR | 15 to 20 minutes maximum | Aggressive on carbon, also corrosive to steel |
CLR works, but treat it as a hazard. It attacks steel and damages finishes. Keep it off the action, trigger, bolt, and stock, never exceed 20 minutes, and flush thoroughly afterward. Plenty of shooters use it successfully; plenty of others have pitted a chamber by walking away and forgetting about it.
Get the solvent onto the deposit and keep it there. A patch wrapped on an oversized brush, pushed into the chamber neck and left in place, holds solvent against the ring far better than a wet patch that drains away in thirty seconds.
Muzzle down or level with the bore plugged both help keep solvent in the throat rather than running into the action.
Step 3: Mechanical Scrubbing
With the deposit softened, bring in the brush. A bronze brush is the right tool for the throat, since bronze is softer than barrel steel and will not damage rifling with reasonable technique.
Use short strokes concentrated in the throat and first few inches of bore rather than full-length passes. Twenty to fifty short strokes in that zone does more than a hundred full-length strokes, and it puts far less wear on the rest of the barrel.
Some shooters wrap bronze wool around an undersized nylon brush for the throat area. It conforms to the freebore and applies more contact pressure where you need it.
Always run the brush in one direction through the bore and never reverse a bronze brush mid-bore. Push it fully out the muzzle before pulling back.
Expect to repeat the soak and scrub cycle. A mature ring rarely surrenders in one pass. Two or three cycles is normal, and each one visibly reduces the deposit.
Step 4: Flush And Re-Verify
Run solvent-wet patches until they come out clean, then dry patches until they come out dry. Any residual carbon remover left in the bore will keep working on the steel.
Now put the borescope back in from the action end and compare against your baseline. You are looking for bright steel in the chamber neck and freebore, not a slightly lighter version of the same dark band.
If a shadow of the ring remains, cycle again. If you have run three or four full cycles with no further progress, stop and reassess the mechanical cause. That usually points at freebore diameter or neck length rather than a cleaning failure.
Finish with a light protective oil if the rifle is going into storage, and remember to patch it dry before the next range trip. Oil left in the bore burns to carbon on the first shot.
Neck Area Carbon Ring Cleaning
The chamber neck deposit needs its own tooling because your bore brushes cannot physically reach it.
The working method is a patch soaked in carbon solvent, pushed into the chamber neck on an oversized brush, and left to penetrate for 15 to 20 minutes. Bore Tech C4 or CLR both work here, with the same CLR cautions as above.
Then rotate the brush in that neck area to scrub the softened carbon free. The brush must be large enough in diameter to actually contact the chamber neck walls, which is why standard caliber-matched brushes accomplish nothing here.
Size it from your chamber neck diameter:
| Cartridge caliber | Approximate chamber neck diameter | Brush to use |
|---|---|---|
| 6mm | ~.274″ | .277″ (.270 cal) or .30 cal |
| 6.5mm | ~.297″ | .30 cal or .338 cal |
| .308 | ~.344″ | .338 cal or .375 cal |
Bronze or copper brushes usually cut the deposit with hand rotation on the rod. Ten seconds of spinning is often enough.
Nylon brushes are gentler but noticeably less effective on hardened carbon. In practice they only work in this area when driven with a cordless drill at moderate speed. Keep the speed down and keep the brush centered.
False Carbon Ring Caused By Shadow
This comes up constantly, and it has saved a lot of shooters an unnecessary cleaning session.
A shooter buys their first borescope, inspects the chamber, spots a dark ring at the end of the chamber neck, and posts photos asking how bad the carbon ring is. Forums and social media groups see this weekly.
In most of these cases there is no carbon at all. The dark band is a shadow cast by the borescope‘s own light across the step where the chamber neck transitions into the freebore.
The giveaway is the inspection direction. Insert the scope from the muzzle and the light hits that step at a glancing angle, throwing a crisp dark line behind it. It looks exactly like a hard carbon ring.
Insert the same scope from the action end and the light now falls on the step from the other side. The shadow disappears completely and the steel reads clean.
Always inspect from the chamber end. If you see a dark ring from the muzzle, verify from the action before you reach for solvent. Real carbon shows texture and a matte, crusted surface from both directions. A shadow only exists from one.
Frequently Asked Questions
Carbon rings form when combustion residue deposits in the chamber neck and throat, then bakes into a hardened layer under repeated heat and pressure cycles. Every powder produces carbon, so the real drivers are mechanical: a freebore diameter that is too tight to vent gas forward, excessive void between the case mouth and chamber neck step, and cleaning methods that never physically reach that area.
The mechanical signs are heavy bolt closure, stiff bolt lift, and tight chambering. The ballistic signs are unexplained velocity drift, sudden flyers, or pressure signs on a load that was previously stable. Confirm visually with a borescope inserted from the action end, looking for a matte, textured dark band in the chamber neck or freebore.
Yes, on both counts. Buildup in the throat changes bullet jump and engraving resistance, which shows up as inconsistent velocity and random flyers. Buildup in the chamber neck physically interferes with the case, producing hard bolt close on chambering and heavy lift after firing.
Combine chemistry with mechanics. Soak the deposit with a dedicated carbon remover for 15 to 30 minutes, scrub with a bronze brush using short strokes concentrated in the throat, flush with wet then dry patches, and re-inspect with a borescope. Repeat the cycle two or three times, since mature deposits rarely clear in one pass.
Bore Tech C4 Carbon Remover is the safest effective first choice, with Wipe-Out foaming cleaner and CLR as alternatives. CLR is aggressive but corrosive to steel, so limit it to 20 minutes and keep it off the action and stock. For tools, use a bronze bore brush for the throat and an oversized brush, roughly .277″ for a 6mm, to reach the chamber neck.
Hoppes No. 9 is a general-purpose bore cleaner that handles soft powder fouling and light copper, but it does very little against hardened, heat-cured carbon. Use a dedicated carbon remover instead. Hoppes remains useful for routine maintenance between the deeper carbon cleaning sessions.
